AC Insulation Guards

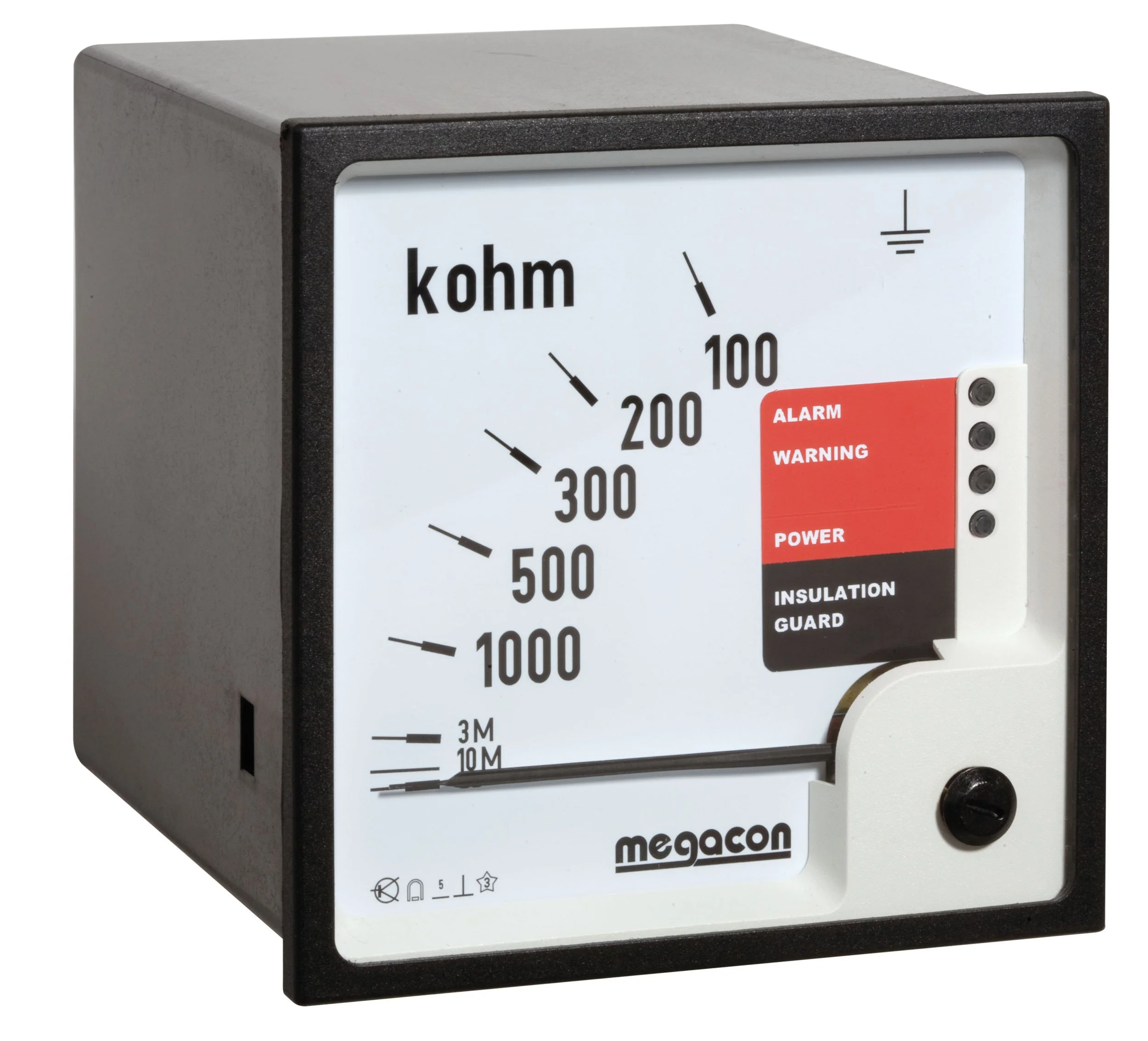

A black and white analog ohmmeter with a digital display, labeled 'megacon', featuring a dial with resistance values in ohms, and indicating a resistance of around 100 ohms.

KPM161x

INSULATION GUARD FOR NON-GROUNDED AC NETWORKS

Direct connection up to 690V line voltage, up to 1,4kV with HV adapter for both single or three phase systems

(Panel mounting)

View datasheet

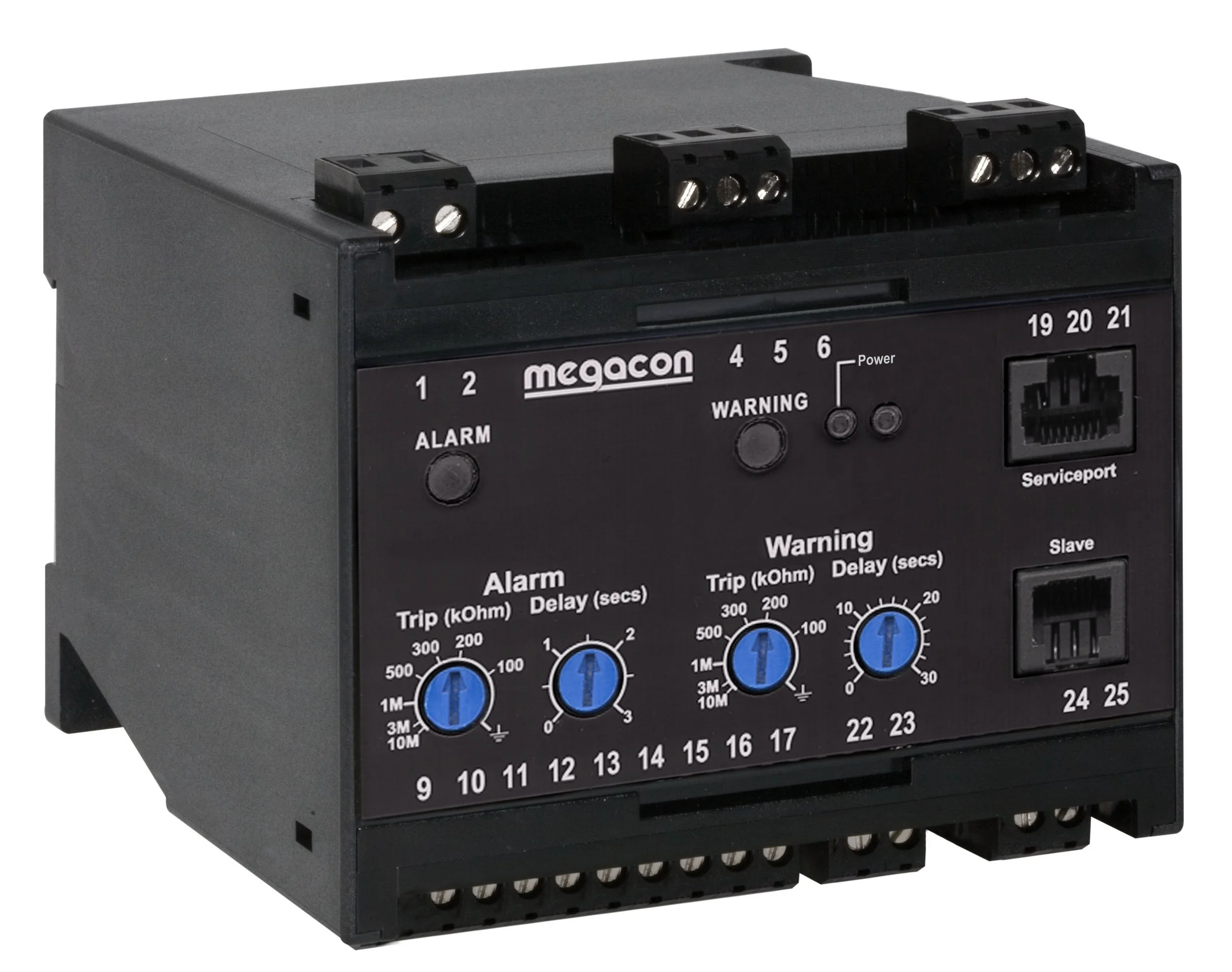

A black electronic device with multiple blue knobs, labeled dials, and a row of numbered terminals. It has various warning labels, including 'ALARM' and 'Warning,' and a network port on the right side.

KCM161x

INSULATION GUARD FOR NON-GROUNDED AC NETWORKS

Direct connection up to 690V line voltage for both single or three phase systems

(DIN Rail mounting)

Download Modbus protocol document

View datasheet
A digital impedance tester device with a white front panel displaying resistance measurements in ohms, a red warning sticker, and the brand name 'megacon' at the bottom, housed in a gray and black casing.

KPM163x

INSULATION GUARD FOR NON-GROUNDED AC NETWORKS

Direct connection up to 690V line voltage, up to 6,6kV with HV adapter for both single or three phase systems

(Panel mounting)

Download Modbus protocol document

View datasheet
Black electronic device with multiple knobs, a display, warning labels, and terminal connectors, labeled with brand 'Megacon'.

KCM163x

INSULATION GUARD FOR NON-GROUNDED AC NETWORKS

Direct connection up to 690V line voltage, up to 6,6kV with HV adapter for both single or three phase systems

(DIN Rail mounting)

Download Modbus protocol document

View datasheet
Close-up of a Megacon radiation detector with a white display showing measurements in kOhm and red warning label, black body, and black and white text.

KPM165x

INSULATION GUARD FOR NON-GROUNDED AC NETWORKS

Direct connection up to 500V line voltage, up to 28kV with HV adapter for both single or three phase systems

(Panel mounting)

Download Modbus protocol document

View datasheet
A black electronic device with multiple blue dials, labels, and connection ports, labeled 'megacon' with warning indicators and numbered controls.

KCM165x

INSULATION GUARD FOR NON-GROUNDED AC NETWORKS

Direct connection up to 690V line voltage, up to 28kV with HV adapter for both single or three phase systems

(DIN Rail mounting)

Download Modbus protocol document

View datasheet
A digital ohmmeter with a display showing resistance measurements in kilo-ohms, produced by Megacon, with indicator labels for alarm, warning, power, and insulation guard.

KPM161Mx

AC INSULATION GUARD WITH HIGH ENERGY DC PROTECTION

Direct connection up to 690V line voltage, up to 1,4kV with HV adapter for both single or three phase systems

(Panel mounting)

View datasheet

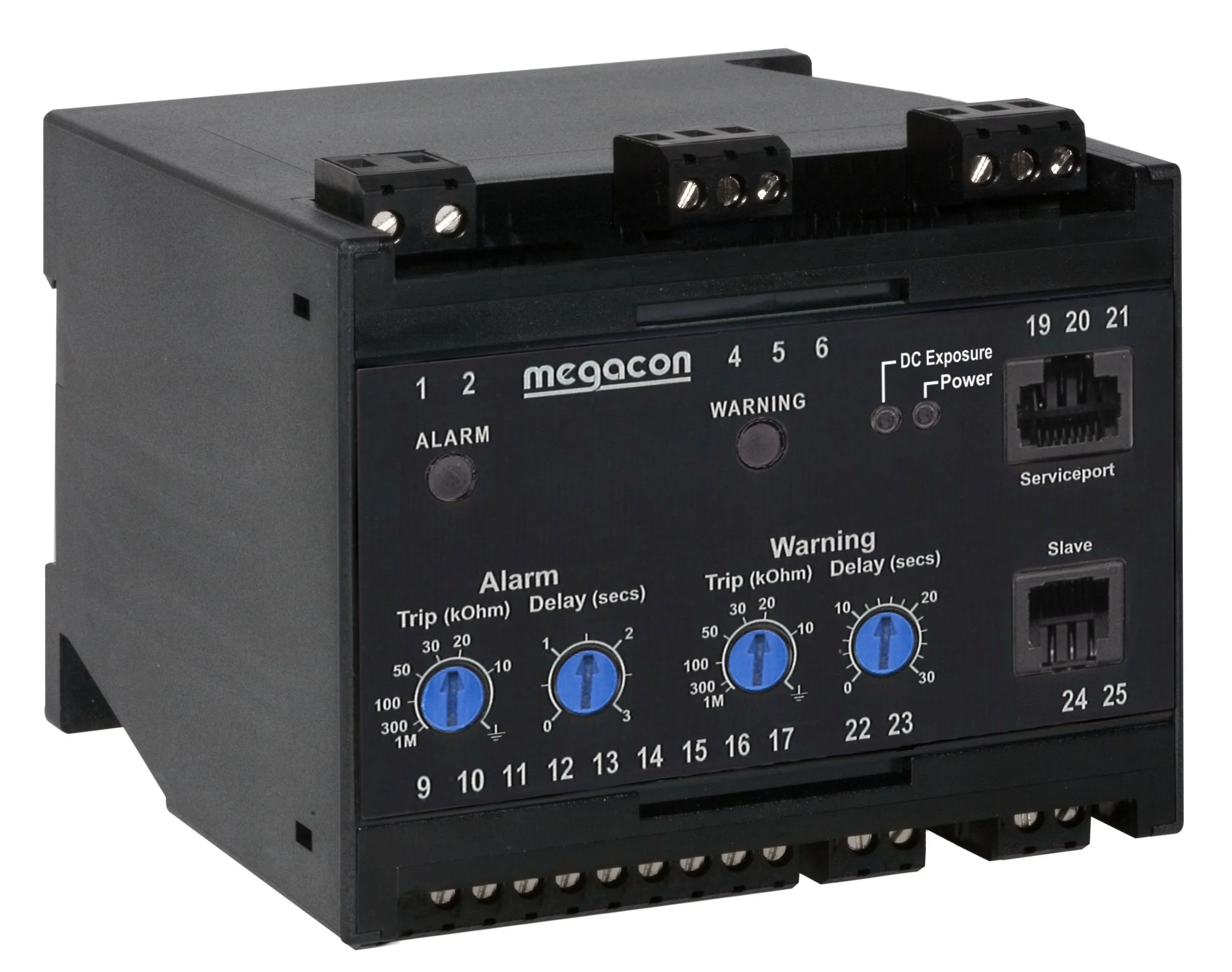

A black industrial relay module with multiple settings and dials, labeled with technical specifications and warning labels.

KCM161Mx

AC INSULATION GUARD WITH HIGH ENERGY DC PROTECTION

Direct connection up to 690V line voltage, up to 1,4kV with HV adapter for both single or three phase systems

(DIN Rail mounting)

View datasheet
A Close-up of a Megacon Radiation Dosimeter device showing measurement scales in black and white, and warning labels in red and white.

KPM161xQx

INSULATION GUARD FOR IT-NETWORKS WITH FREQUENCY CONVERTERS

Direct connection up to 690V line voltage, up to 1,4kV with HV adapter for both single or three phase systems

(Panel mounting)

View datasheet
A black industrial relay or timer device with numbered knobs, labels, warning texts, and an Ethernet port.

KCM161xQx

INSULATION GUARD FOR IT-NETWORKS WITH FREQUENCY CONVERTERS

Direct connection up to 690V line voltage, up to 1,4kV with HV adapter for both single or three phase systems

(Panel mounting)

View datasheet
A black and white analog device with a dial displaying measurements in ohms, featuring labels such as alarm, warning, power, and insulation guard, with icons and text indicating the brand "megacon" and model details.

KPM163xQx

INSULATION GUARD FOR IT-NETWORKS WITH FREQUENCY CONVERTERS

Direct connection up to 690V line voltage, up to 6,6kV with HV adapter for both single or three phase systems

(Panel mounting)

View datasheet
A black industrial electronic control module with various labeled dials and ports, including an Ethernet port, manufactured by Megacon.

KCM163xQx

INSULATION GUARD FOR IT-NETWORKS WITH FREQUENCY CONVERTERS

Direct connection up to 690V line voltage, up to 6,6kV with HV Adapter for both single or three phase systems

(DIN Rail mounting)

View datasheet
An analog ammeter with a needle pointer, a numbered scale up to 300, and the label 'k ohm,' indicating a resistance measurement device.

KPM26x

AC INSULATION GUARD WITH MEASURING LOOP SUPERVISION

Direct connection up to 690V line voltage, up to 6,6kV with HV adapter for both single or three phase systems

(Panel mounting)

Download Modbus protocol document

View datasheet
A black industrial automation relay module with blue adjustment knobs and various ports and labels.

KCM26x

AC INSULATION GUARD WITH MEASURING LOOP SUPERVISION Direct connection up to 690V line voltage, up to 6,6kV with HV adapter for both single or three phase systems

(DIN Rail mounting)

Download Modbus protocol document

View datasheet
