EQ Voltmeter Series

Moving Iron A.C. Voltmeters

Designed to measure A.C. voltage, these meters indicate true r.m.s. values and are substantially independent of system waveform. Voltmeters can be scaled for use with voltage transformers. Accuracy 1,5.

Specifications

Accuracy

Class 1,5

Ratings

100-125V AC
200-240V AC
380-415V AC
440-460V AC

Scale

0-150V
0-300V
0-500V
0-600V
Fit to VT i.e. 690:230V

Dimensions

48 x 48mm (EQ48c)
72 x 72mm (EQ72c)
96 x 96mm (EQ96c)

EQD Dual Voltmeter Series

Dual Moving Iron A.C. Voltmeters

The two instruments in one case can be used for independent measurement of 2 parameters or the comparison of the two inputs.

Specifications

Accuracy

Class 1,5

Ratings

100-125V AC
200-240V AC
380-415V AC
440-460V AC

Scale

0-150V
0-300V
0-500V
0-600V
Fit to VT i.e. 690:230V

Dimensions

96 x 96mm (EQ96c)

EQ Voltmeter with Selector Switch Series

Moving Iron A.C. Voltmeters with Selector Switch

Designed to measure A.C. voltage, these meters indicate true r.m.s. values and are substantially independent of system waveform. Voltmeters can be scaled for use with voltage transformers.

Specifications

Accuracy

Class 1,5

Ratings

100-125V AC
200-240V AC
380-415V AC
440-460V AC

Scale

0-150V
0-300V
0-500V
0-600V
Fit to VT i.e. 690:230V

Dimensions

72 x 72mm (EQ72c)
96 x 96mm (EQ96c)

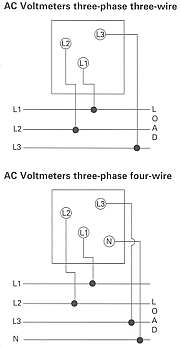

Selector Switch

EQ96C-C3V
3 ( off) switch pos; L1L2, L2L3, L3L1, Off
EQ96C-SC3V
6 switch pos; L1L3, L1L2, L2L3, L3N, L2N, L1N
