Measurement and Protection

Complete range of transformers for reducing high primary currents down to a consistent 5 or 1 Amp secondary current. Options include moulded case width, busbar and aperture sizes, tape wound, balanced and split cores, current ratings and various mounting options.

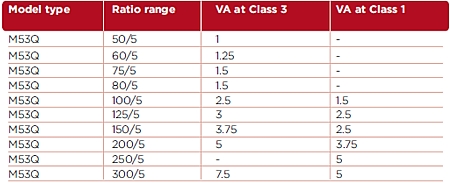

M53Q Range


  • Case Size: 45mm wide x 30mm deep x 65mm high 1.8" wide x 1.2" deep x 2.5" high
  • Aperture: 20 x 6mm and 21mm diameter 0.8" x 0.2" and 0.8" diameter
  • Weight: 0.25kg
_____________________________________________________________________________________________________

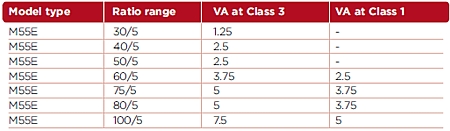

M55E Range


  • Case Size: 50mm wide x 50mm deep x 80mm high 2" wide x 2" deep x 3.1" high
  • Aperture: 15 x 5mm and 16 diameter 0.6" x 0.2" diameter
  • Weight: 0.4Kg
_____________________________________________________________________________________________________

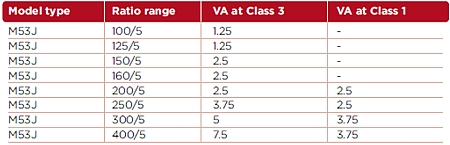

M53J Range


  • Case Size: 50mm wide x 30mm deep x 80mm high 2" wide x 1.2" deep x 3.1" high
  • Aperture: 30 x 10mm, 25 x 15mm and 20 x 20mm and 25mm diameter 1.2" x 0.4", 1" x 0.6" and 0.8" x 0.8" and 1.0" diameter
  • Weight: 0.22Kg
_____________________________________________________________________________________________________

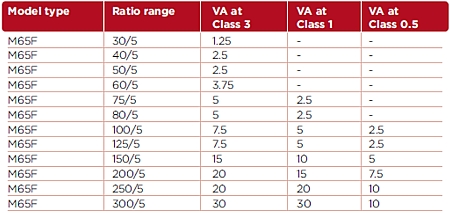

M65F Range


  • Case Size: 60mm wide x 50mm deep x 94mm high 2.4" wide x 2" deep x 3.7" high
  • Aperture: 20 x 10mm and 23mm diameter 0.8" x 0.4", 0.9" diameter
  • Weight: 0.4Kg
_____________________________________________________________________________________________________

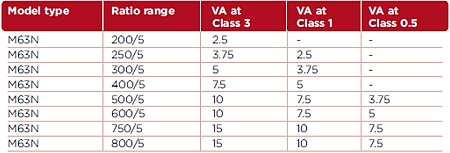

M63N Range


  • Case Size: 60mm wide x 30mm deep x 94mm high 2.3" wide x 1.2" deep x 3.7" high
  • Aperture: 40 x 10mm and 32mm diameter 1.5" x 0.4" and 1.2" diameter
  • Weight: 0.3Kg
_____________________________________________________________________________________________________

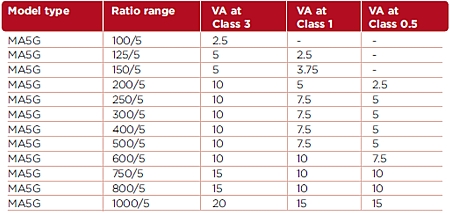

MA5G Range


  • Case Size: 77mm wide x 50mm deep x 116mm high 3" wide x 2" deep x 4.5" high
  • Aperture: 40 x 10mm, 30 x 30mm and 36mm diameter 1.6" x 0.4", 1.2" x 1.2" and 1.4" diameter
  • Weight: 0.6Kg
_____________________________________________________________________________________________________

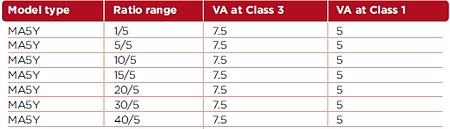

MA5Y Range


  • Case Size: 77mm wide x 50mm deep x 116mm high 3" wide x 2" deep x 4.5" high
  • Fixing: M8 stud primary bar
  • Weight: 0.45Kg
_____________________________________________________________________________________________________

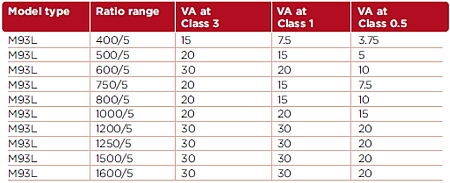

M93L Range


  • Case Size: 90mm wide x 30mm deep x 131mm high 3.5" wide x 1.2" deep x 5.1" high
  • Aperture: 50 x 10mm, 40 x 30mm and 32mm diameter 2" x 0.4", 1.5" x 1.2" and 1.3" diameter
  • Weight: 0.45Kg
_____________________________________________________________________________________________________

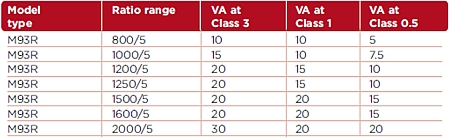

M93R Range


  • Case Size: 90mm wide x 30mm deep x 131mm high 3.5" wide x 1.2" deep x 5.1" high
  • Aperture: 64 x 12.6mm, 60 x 30mm 2.5" x 0.5", 2.4" x 1.2"
  • Weight: 0.6Kg
_____________________________________________________________________________________________________

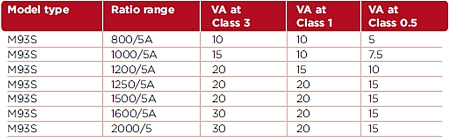

M93S Range

  • Case Size: 90mm wide x 30mm deep x 131mm high 3.5" wide x 1.2" deep x 5.1" high
  • Aperture: 76.5 x 19mm, 60 x 30mm 3.0" x 0.7", 2.4" x 1.2"
  • Weight: 0.7Kg
_____________________________________________________________________________________________________

S95P Range


  • Case Size: 90mm wide x 50mm deep x 144mm high 3.5" wide x 2" deep x 5.7" high
  • Weight: 0.9Kg - 1.11Kg

_____________________________________________________________________________________________________

S97P Range


  • Case Size: 90mm wide x 70mm deep x 144mm high 3.5" wide x 2.8" deep x 5.6" high
  • Weight: 1.3Kg - 1.5Kg
_____________________________________________________________________________________________________

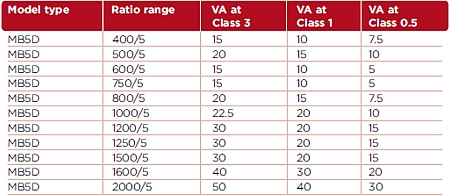

MB5D Range


  • Case Size: 134mm wide x 50mm deep x 156mm high 5.2" wide x 2" deep x 6.1" high
  • Aperture: 80 x 30mm, 60 x 30mm, 50 X 50mm and 63mm diameter 3.1" x 1.2", 2.3" x 1.2", 2 x 2" and 2.4" diameter
  • Weight: 0.5Kg
_____________________________________________________________________________________________________

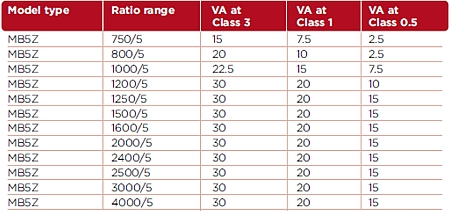

MB5Z Range


  • Case Size: 134mm wide x 50mm deep x 156mm high 5.2" wide x 2" deep x 6.1" high
  • Aperture: 104 x 35mm, 35mm diameter 4" x 1.3" and 1.3" diameter
  • Weight: 0.7Kg
_____________________________________________________________________________________________________

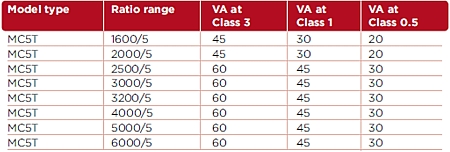

MC5T Range


  • Case Size: 140mm wide x 50mm deep x 238mm high 5.5" wide x 2" deep x 9.3" high
  • Aperture: 160 x 50mm 6.3" x 2"
  • Weight: +/-1.5Kg
_____________________________________________________________________________________________________

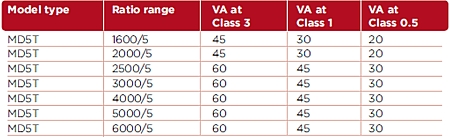

MD5T Range


  • Case Size: 213mm wide x 50mm deep x 165mm high 8.3" wide x 2" deep x 6.5" high
  • Aperture: 160 x 50mm 6.3" x 2"
  • Weight: +/-1.5Kg
